reinit_circle.c

LS_reinit() test case
- References

LS_reinit() test case

Extreme test case

#define BICUBIC 1
#define BGHOSTS 2
#include "distance_point_ellipse.h"

#include "embed.h"
#include "../alex_functions.h"
#include "redistance.h"
#include "view.h"

double perturb (double x, double y, double eps, coord center)
{
  return eps + sq(x - center.x) + sq(y - center.y);
}

void draw_isolines(scalar s, double smin, double smax, int niso, int w)
{
  scalar vdist[];
  cell2node(s,vdist);
  boundary ({vdist});
  for (double sval = smin ; sval <= smax; sval += (smax-smin)/niso)

‘lw’ undeclared (first use in this function); did you mean ‘w’?

    isoline ("vdist", sval, lw = w);
}

scalar dist[];
scalar * level_set = {dist};

int main()
{
  origin (-5., -5.);
  L0 = 10;

  int MAXLEVEL = 9;
  init_grid (1 << MAXLEVEL);

  coord  center_perturb = {-3.5,-2.};
  foreach(){
    double theta = atan2(y, x), r = sqrt (sq(x) + sq(y));
    dist[] = (1.0 + 0.15*cos(6.*theta) - r)*perturb(x,y, 0.1, center_perturb)/3.;
  }
  boundary({dist});

  view (fov = 15.);

‘map’ undeclared (first use in this function); did you mean ‘mmap’?
‘cool_warm’ undeclared (first use in this function)
‘min’ undeclared (first use in this function); did you mean ‘main’?
‘max’ undeclared (first use in this function); did you mean ‘fmax’?

  squares ("dist", map = cool_warm, min = -1, max = 1);
  draw_isolines (dist, -1., 1., 10, 1);
  save ("dist_init.png");

  //LS_reinit (dist, it_max = 200);
  scalar resf[];

too many arguments to function ‘redistance’
void value not ignored as it ought to be

  int niter = redistance(dist, 500, 0.5, 3, 1e-6, HUGE, resf);
  squares ("dist", map = cool_warm, min = -1, max = 1);
  draw_isolines (dist, -1., 1., 10, 1);
  save ("dist_first_reinit.png");

  squares ("dist", map = cool_warm, min = -1, max = 1);
  draw_isolines (dist, -1, 1, 10, 1);
  save ("dist_final.png");
}

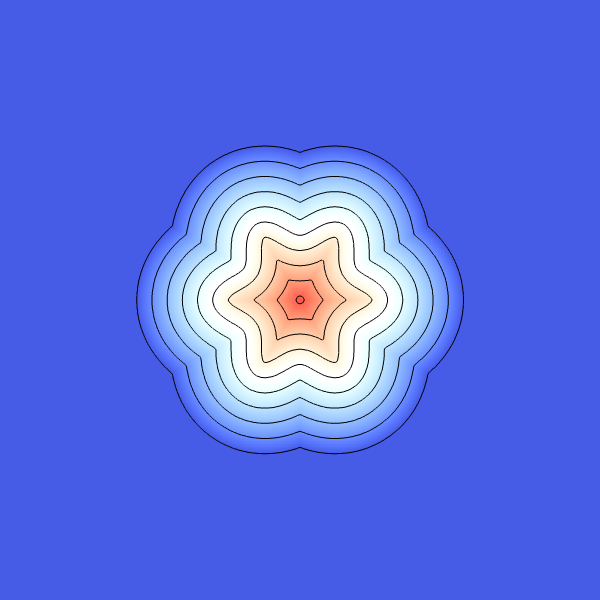

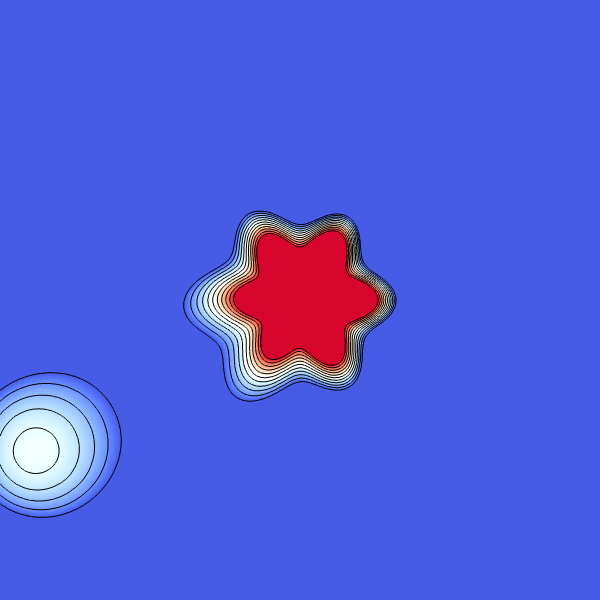

We show here the initial and final level-set for the same isovalues.

References

[russo_remark_2000]

Giovanni Russo and Peter Smereka. A remark on computing distance functions. Journal of Computational Physics, 163(1):51–67, 2000.
